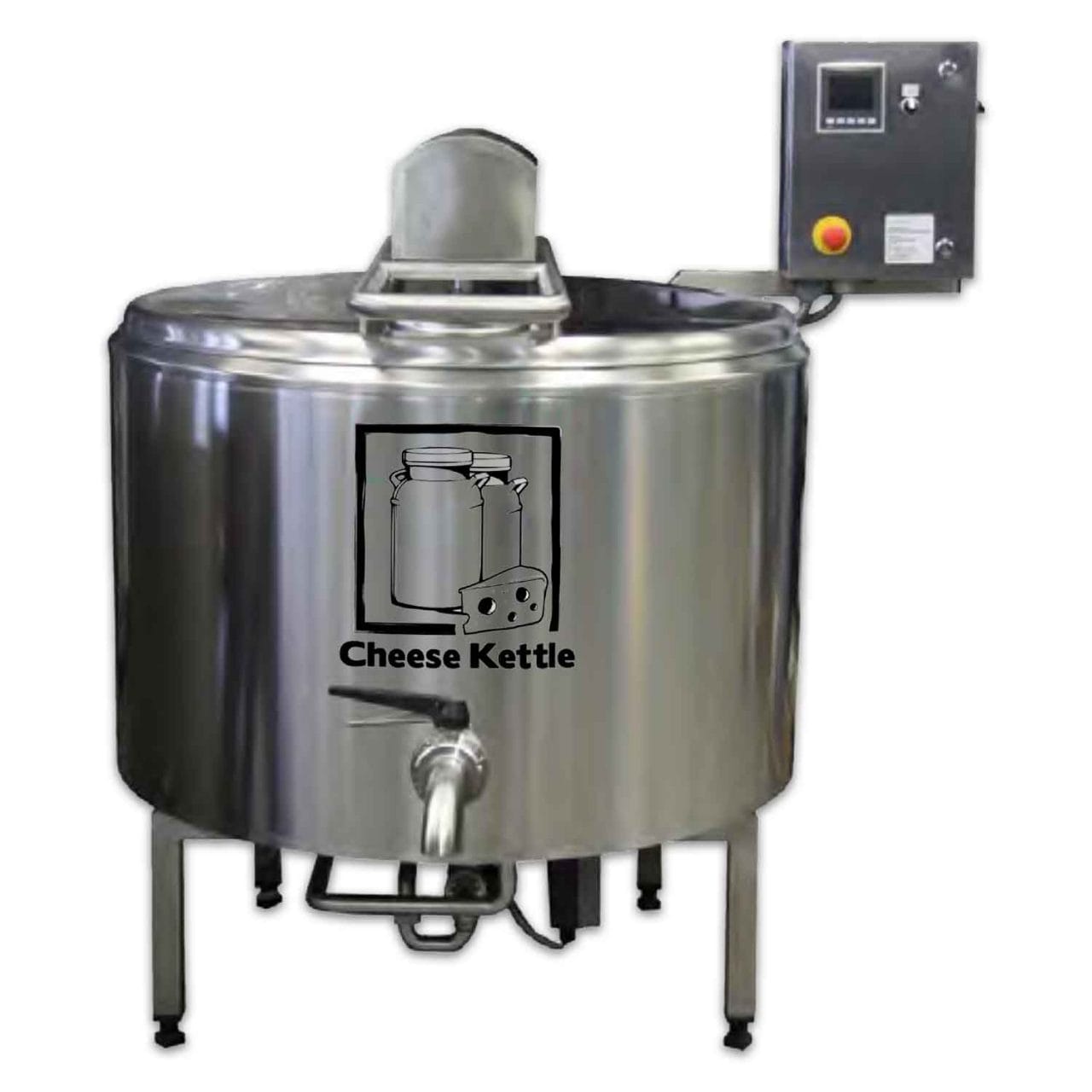

50 Ltr Pasteurizer for Milk

This 50 Litre milk pasteuriser is a non-pressurised stainless steel unit designed for heating, pasteurising and cooling smaller milk batches.

Key benefits of using a Stainless Steel Milk Pasteurizer

• The energy-saving three-coat insulated jacket is made from AISI 304 or 316 stainless steel and helps reduce heat loss during processing.
• Heating and cooling energy is exchanged directly through the sides and bottom of the kettle, with 1/2” connections for the required heating and cooling utilities.
• The pasteuriser uses a one-part cover and a permanently mounted top agitator with a stirrer operating at around 25 rpm to keep the milk moving during treatment.
• Two 12kW electrical heating elements provide a total heating capacity of 24kW and operate on 400V 3N 50Hz power.
• Two manual temperature probes allow the product temperature and head space temperature to be checked separately during processing.
• A basic manual head space heating system provides additional heating within the upper area of the vessel when required.
• The short outflow is fitted with a DN50 butterfly valve to 3-A standard for product discharge.

Pro Tip: Heating and cooling times will vary depending on the starting product temperature, chilled water or glycol temperature, liquid flow rates and other operating factors.
